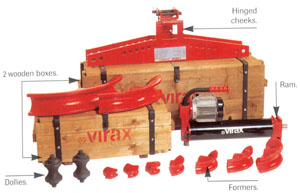

电动油压弯管机 φ3/8″-4″
with ram n°3

Designation	For pipes		Radius	Code	Compositions
Designation	φinch	φmm	mm	Code	Compositions
With 230V electric ram				2408 02	2408 41	2408 42	2408 43
With 400V electric ram				2408 05	2408 44	2408 45	2408 46
230V bending angle limit switch				2408 11	Option	Option	Option
400V bending angle limit switch				2408 12	Option	Option	Option
Open cheek				2402 16	-	■	-
Dolly OC				2401 14	-	■■	-
Tripod OC				2401 07	-	Option	-
Pair of sliding cheeks				2402 17	-	-	■
Heavy-duty upper cheek				2402 19	■	-	■■
Heavy-duty lower cheek				2402 18	■	-	Option
Dolly SC and HD				2401 15	■■	-	■■
Tripod HD				2401 09	Option	-	-
Former	3/8"	12/17	40	2401 41	■	■	■
	1/2"	15/21	50	2401 42	■	■	■
	3/4"	20/27	65	2401 43	■	■	■
	1"	26/34	100	2401 44	■	■	■
	1 1/4"	33/42	135	2401 45	■	■	■
	1 1/2"	40/49	160	2401 46	■	■	■
	2"	50/60	210	2401 47	■	■	■
Box				2401 86	■	■	■
weight Kg					83	93	87

Pack of joints and accessories：7510 40

Designation	For pipes		Radius	Code	Compositions
Designation	φinches	φmm	mm	Code	Compositions
With 230V electric ram				2408 03	2408 89	2428 52	2408 53	2408 51
With 400V electric ram				2408 06		2408 55	2408 56	2408 54
230V bending angle limit switch				2408 13	option	option	option	option
400V bending angle limit switch				2408 14	-	option	option	option
Adapter for ram				2402 05	-	-	■	■
Articulated cheek 3/8" to 3"				2402 28	■	■	-	■
Dolly for articulated cheek				2401 20	■■	■■	-	■■
Upper cheek 21/2" to 4"				2402 23	-	-	■	■
Lower cheek 21/2" to 4"				2402 22	-	-	■	■
Dolly SC and HD				2401 17	-	-	■■	■■
Tripod HD				2401 06	-	-	option	option
Former	3/8"	12/17	40	2401 41	-	■	-	■
	1/2"	15/21	50	2401 42	■	■	-	■
	3/4"	20/27	65	2401 43	■	■	-	■
	1"	26/34	100	2401 44	■	■	-	■
	11/4"	33/42	135	2401 45	■	■	-	■
	11/2"	40/49	160	2401 46	■	■	-	■
	2"	50/60	210	2401 47	■	■	-	■
	21/2"	66/76	350	2401 48	-	-	-	■
	3"	80/90	400	2401 49	■	-	-	■
	21/2"	66/76	350	2401 22	-	-	■	-
	3"	80/90	400	2401 23	-	-	■	-
Section former	31/2"	90/102	mini 1800	2401 24	-	-	■	■
Section former	4"	102/114	mini 2000	2401 25	-	-	■	■
Box				2401 30	-	-	■	■
Box				2401 27	-	■	-	-
Box				2401 88	-	■	■	■
Weight Kg					128	188	241	305
